Development of the fundamentals and the simulation model (UltraCaulk)

Third Party Funds Group - Sub project

Acronym: UltraCaulk

Start date : 01.08.2014

End date : 31.07.2017

Project picture

Overall project details

Overall project

UltraCaulk: KMU-innovativ - Verbundprojekt: Kontext- und strukturbasierte Abwehr zielgerichteter Angriffe - APT-Sweeper

Project details

Short description

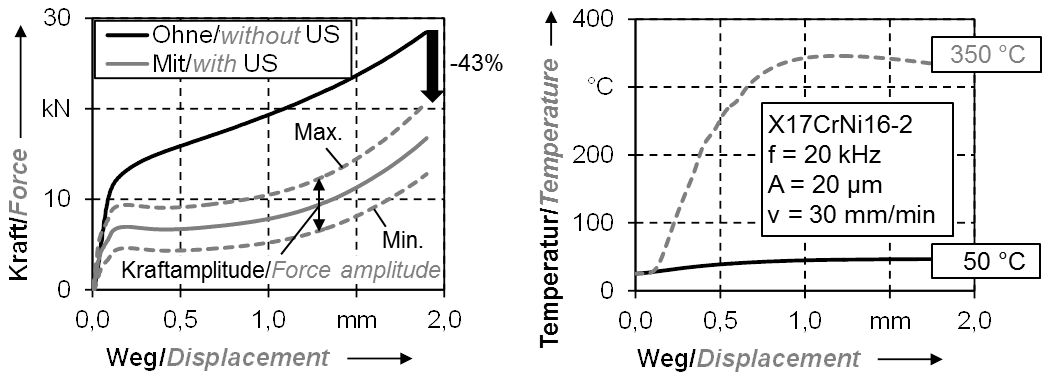

Objective of the research project "UltraCaulk" was the development of a hybrid manufacturing process for the ultrasonic-assisted forming of difficult-to-deform materials, such as high strength steel. The superimposed oscillation enables a considerable reduction of the required forces and therefore the workpiece loading. The sub-project "development of the fundamentals and the simulation model" was mainly concerned with the identification of relevant process parameters and potential causes for the force reduction occurring during ultrasonic-assisted compression testing with different metallic materials. For stainless steel X17CrNi16-2 an amplitude dependent force reduction of up to 43 % is generated, which could be traced back to thermal and microstructural influences
