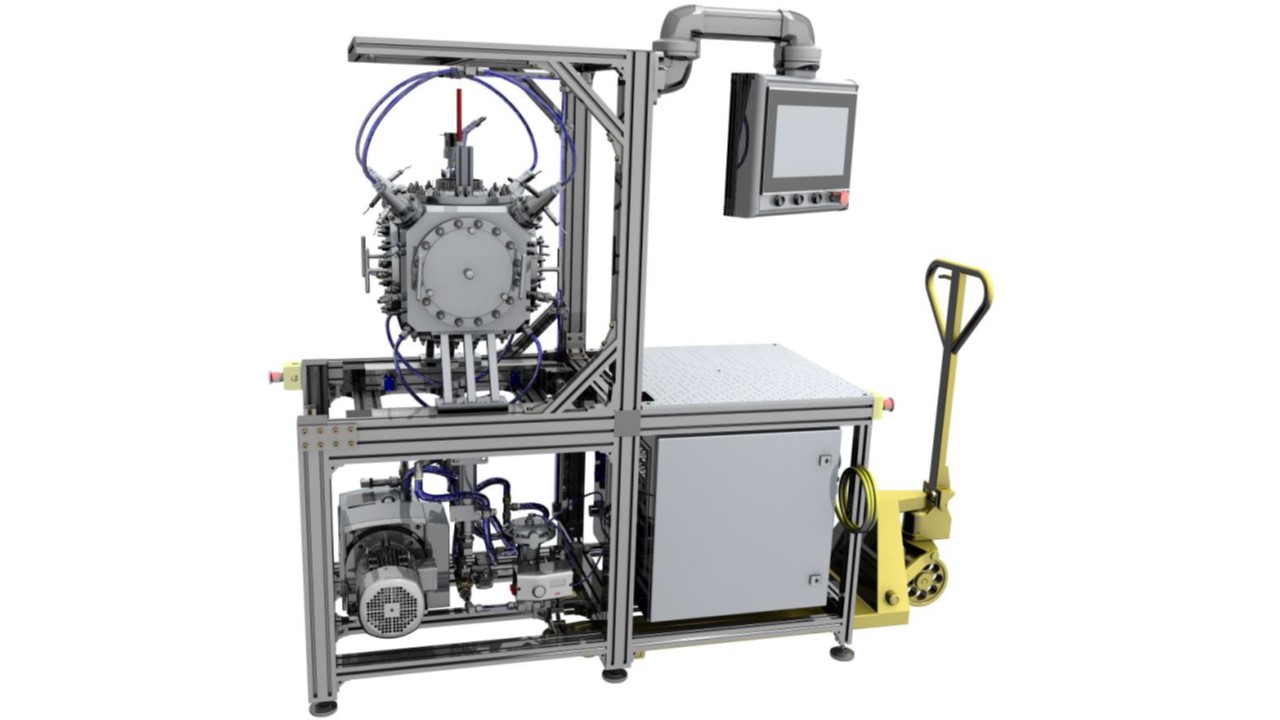

Mobile Gasoline Injection Chamber (FAU)
Model: Benzineinspritzkammer
Manufacturer: FAU (2019)
Location: Erlangen
Usage: FAU internal
Pictures
DFG Key: 2860 Motoren- und Getriebeprüfstände, Verdichterprüfstände
Feature(s)
PNR – Spraychamber
• Setup for research project PN-Reduktion (BMWi)
• Opt access d = 200 mm
• pressure = 13 bar; Temperature 600 K
Mobile concept
• Integration of all components in one setup
• Linear stage for chamber tranlation
• Connections: supply air, exhaust air, tempering electr. supply
Pressure (absolute) 0,3 – 30 bar
Gas temperature 293 K - 693 K
Spülmedium Air, Nitrogen
Window diameter 200 mm
Inner volume 15 liter
Fuel pressure 100 MPa
Fuel temperature 273 K - 383 K
Injection rate 0,1 Hz - 1 Hz
Description
Einspritzkammer zur Sprayuntersuchung mit optischen Messmethoden
