High-temperature/high-pressure injection and combustion vessel I (FAU)
Model: Diesel-Einspritzkammer
Manufacturer: FAU (2008)
Location: Nuremberg
Usage: FAU internal
Pictures
DFG Key: 2860 Motoren- und Getriebeprüfstände, Verdichterprüfstände
Description

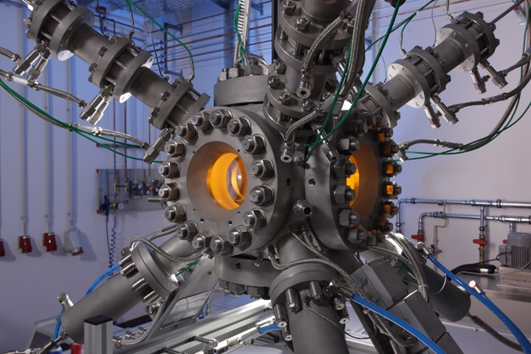

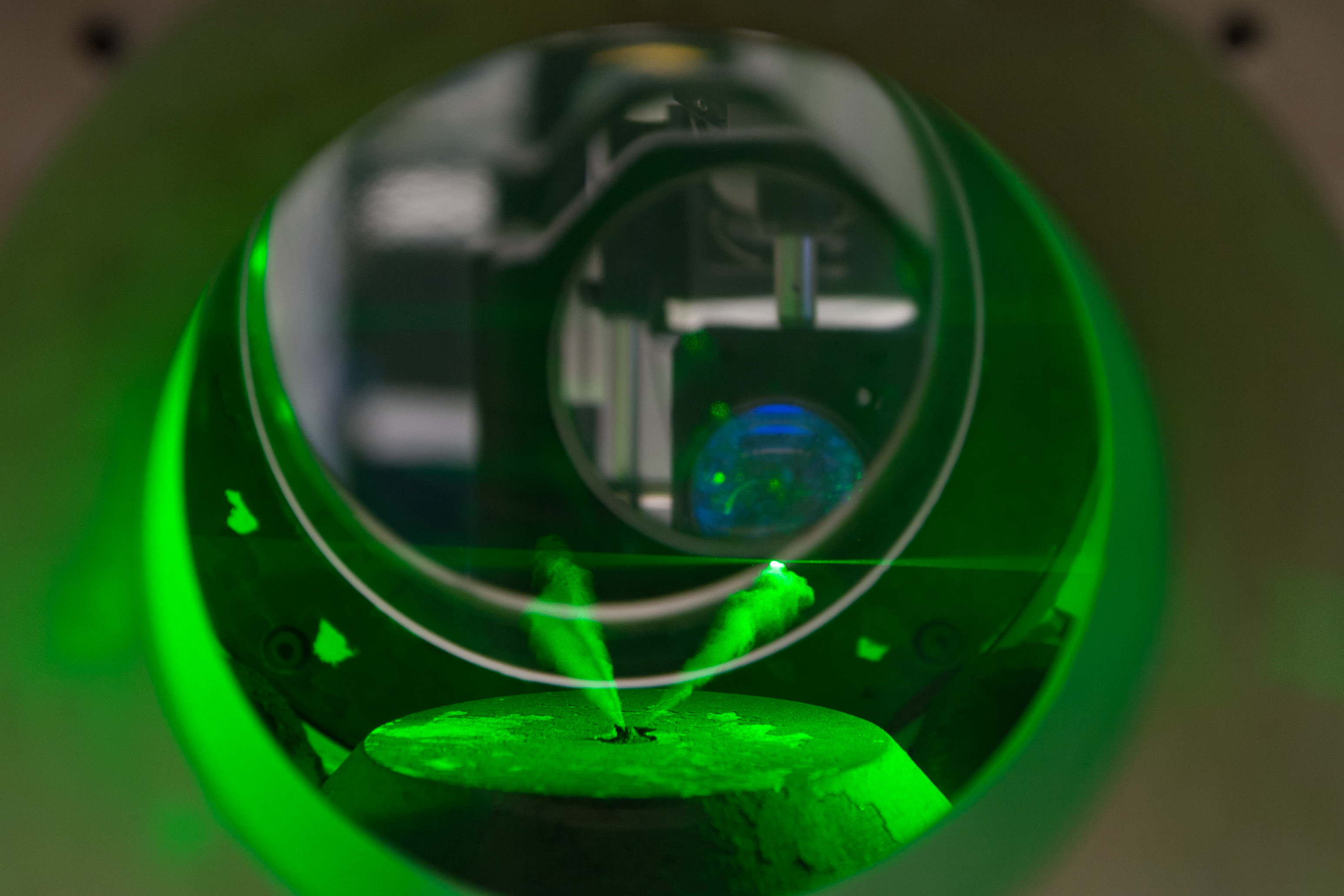

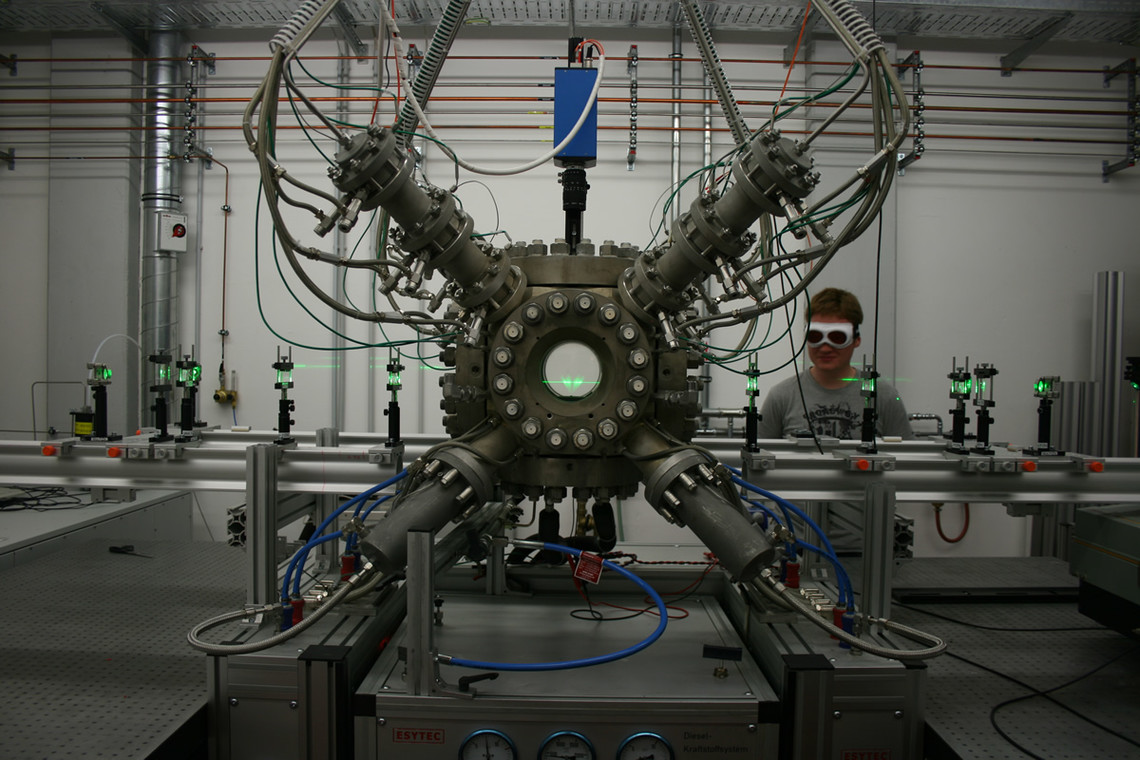

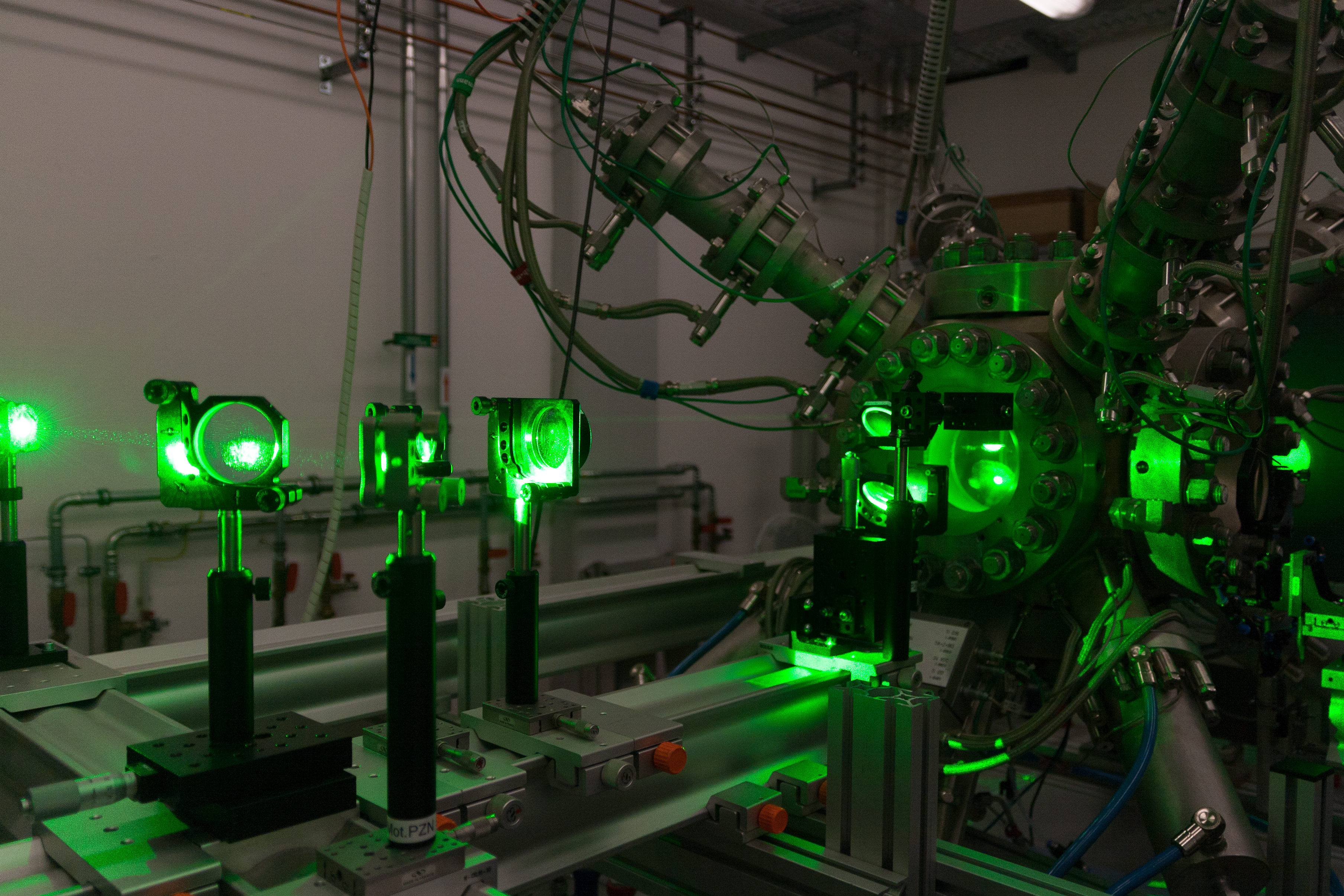

High-temperature/high-pressure chamber for (optical) investigation of spray and phase change processes under high pressures and temperatures.
Primarily used for the fundamental investigation of injection and combustion processes in the field of diesel injection and combustion.
- maximum temperature: 1000 K, maximum pressure 100 bar
- injection pressure of up to 4000 bar

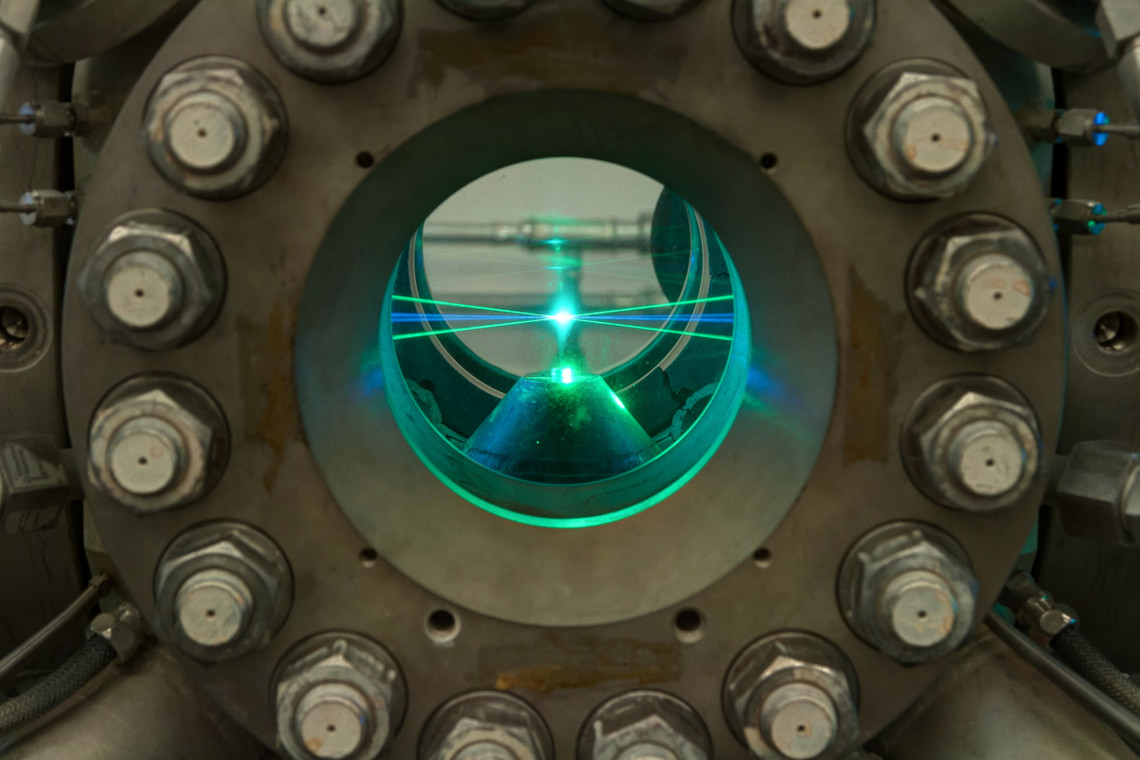

- 5 large optical entrances,
- open, electrically heated system for high measuring frequency of 1-2 Hz => up to 16,000 examinations per day
